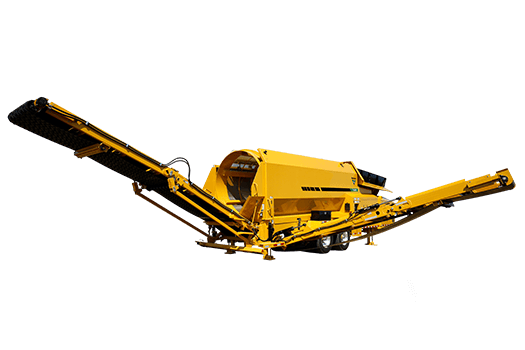

The TR6400 trommel screen was designed with toughness, compactness and ease of maintenance in mind. The 100 hp (75 kW) Deutz Tier 4 Final engine, combined with a 6 ft (1.8 m) by 20 ft (6.1 m) drum is ideal for topsoil, compost and woody biomass applications.
| Manufacturer | Vermeer |
| Model | TR6400 Trommel Screen |
| Category | Landscape, Recycling |
| Price | Request a Quote |
| Year | 2024 |
| Conveyor Belt Width | 36in (91.4cm) |
| Conveyor Motor Displacement | 14.2cu-in (232.7cu-cm) |
| Troughing Idler Type | 20 deg CEMA "B" with permanently sealed bearings spaced at 40-in centers |
| Fines Conveyor Length | 23.5ft (7.2m) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16 x 1/16 in (4.8 mm x 1.6 mm) smooth |
| Conveyor Belt Stacking Height | 10.5 ft (3.2 m) (conveyor @ 30 deg) |
| Fines Conveyor Frame | Engineered structural frame |
| Head Pulley Type | 8 in (20.3 cm) crowned |
| Fines Belt Speed | 400ft/min (121.9m/min) |
| Self-Cleaning Tail Pulley Dimensions | 8 in diameter, 38 in wide, crowned wing pully |
| Self-Cleaning Return Idlers | 2, 4 in (10.2 cm) diameter; 1, 5 in (12.7 cm) diameter, "rattle roller" |
| Head Pulley Bearing | 1.5 in (3.8 cm) pillow block |
| Head Pulley Takeup | 8in (20.3cm) |
| Brush Assembly Support | Two 1.25 in (3.2 cm) sealed ball bearings/brush |
| Bristle Material | Polyethylene |
| Brush Diameter | 14in (35.6cm) |
| Maximum Variable Overs Belt Speed | 360ft/min (109.7m/min) |
| Head Pulley Bearing | 1.5 in (3.8 cm) pillow block |
| Overs Conveyor Length | 19.2ft (5.9m) |
| Overs Conveyor Frame | Engineered structural frame |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16 x 1/16 in (4.8 x 1.6 mm) cleated |
| Conveyor Belt Size | 42 in (106.7 cm) |
| Self-Cleaning Tail Pulley Dimensions | 8 in (20.3 cm) diameter, 44 in (111.8 cm) wide, crowned wing pulley, 1.75 in (4.4 cm) shaft |
| Conveyor Belt Stacking Height | 9 ft (2.7 m) (conveyor @ 25 deg) |
| Head Pulley Type | 8 in (20.3 cm) crowned |
| Head Pulley Takeup | 8in (20.3cm) |
| Self-Cleaning Return Idlers | 2, 4 in (10.2 cm) diameter; 1, 5 in (12.7 cm) diameter, "rattle roller" |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 32-in centers |
| Axle/Suspension | Leaf spring |
| Tires - Option One | 445/50 R22.5 |
| Frame Description | Four independent hydraulic jacklegs |
| Weight | 37000lbs (16782.9kg) |
| Transport Height | 13.1ft (4m) |
| Operation Width | 295in (749.3cm) |
| Transport Width | 99in (251.5cm) |
| Operation Height | 16.7ft (5.1m) |
| Hitch Weight | 4200lbs (1905.1kg) |
| Transport Length | 40ft (12.2m) |
| Operation Length | 54ft (16.5m) |
| Capacity | Approximately 180 cu yd (137.6 cu m) per hour with 0.5 in (1.3 cm) screens installed and material with moisture less than 40% |
| Tank capacity | 80gal (302.8L) |
| Operation | 77.8 gpm @ 3000 psi (294.5 L/min @ 206.8 bar) |
| Drum Operation | 0-33.1 gpm (0-125.3 L/min) |
| Thrust Bearing Face | 2in (5.1cm) |
| Drum Speed | 0-25 rpm |
| Maximum Screen Panels | 8 |
| Thrust Bearing Diameter | 4in (10.2cm) |
| Drum Diameter | 6.5ft (2m) |
| Drum Motor | 35.5 cu in (581.7 cu cm) displacement |
| Drum Angle Adjustability | 0-5 deg |
| Drum Drive Chain | 140 extended pin/extended width |
| Drum Support Description | 8 polyurethane trunnion wheels on pivoting bogeys 8 od x 4 in wide (20.3 x 10.2 cm) |
| Drum Length | 20ft (6.1m) |
| Hopper Height | 9.5 ft (2.9 m) from ground level at operating incline |
| Apron Opening Height | 45in (114.3cm) |
| Apron Conveyor Belt Width | 42in (106.7cm) |
| Apron Opening Width | 37.5in (95.3cm) |
| Hopper Opening | 11.7 ft x 5.3 ft (3.57 m x 1.6 m) |
| Apron Conveyor Rollers | 5 CEMA "D" x 17 in (12.7 x 43.2 cm) |
| Hopper Bottom Width | 37.5in (95.3cm) |
| Apron Conveyor Length | 12.4ft (3.8m) |
| Hopper Capacity | 6.5cu yd (5cu m) |
| Apron Conveyor Speed | 0-15 fpm |
| Conveyor Belt Width | 36in (91.4cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/6" x 1/16" (4.8 mm x 1.6 mm) |
| Head/Tail Pulley Type | 8 in (20.3 cm) crowned |
| Head Pulley Bearing | 1.75 in (4.4 cm) double roller |
| Rubber Flashing | Adjustable corded rubber |
| Idler Type | 4 in (10.2 cm) CEMA "B" straight |
| Tail Pulley Takeup | 6in (15.2cm) |
| Self-Cleaning Return Idlers | 4 in (10.2 cm) rubber disk x 3 |
| Fines Conveyor Frame | Part of trailer frame |
| Collecting Conveyor Length | 16ft (4.9m) |
| Collecting Belt Speed | 360ft/min (109.7m/min) |
| Make and Model | Deutz 3.6L Tier 4F (Stage IV) |
| Number of Cylinders | 4 |
| Engine Rating | 100 hp (74.5 kW) |
| Fuel Tank Capacity | 50gal (189.3L) |
| Fuel Consumption | 3 gph (11.4 L/h) |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | 30deg |
| Battery | 950 CCA |
| Oil Filter | Spin-on |
| Recommended Oil | Mobil 15W40 |
| Oil Volume with Filter | 10qt (9.5L) |
| System Voltage | 12 V, 120 amp alternator |
| Air Cleaner | Dual element |
| Radiator Fan | Suction |
