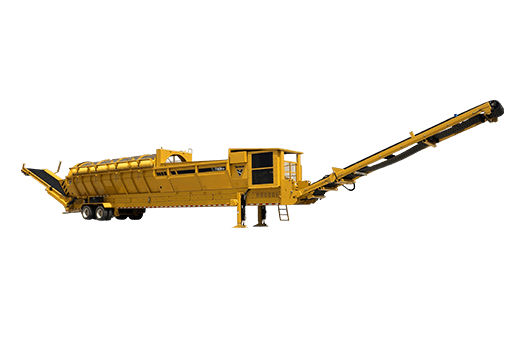

Like the TR626 trommel screen, the TR626EM trommel screen takes the Vermeer trommel screen lineup to the next level with similar design and the ability to tackle tough jobs. The Vermeer TR626EM is equipped with a 150-hp (112-kW) Siemens motor which can help reduce jobsite noise and overall machine maintenance.
| Manufacturer | Vermeer |
| Model | TR626EM Trommel Screen |
| Category | Landscape, Recycling |
| Price | Request a Quote |
| Year | 2024 |
| Conveyor Belt Width | 36in (91.4cm) |
| Tail Pulley Takeup | 12in (30.5cm) |
| Conveyor Motor Displacement | 38.4cu-in (629.3cu-cm) |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 24 in (60.96 cm) centers |
| Fines Conveyor Length | 72.5ft (22.1m) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm) |
| Conveyor Belt Stacking Height | 16.6 ft (5.1 m) with drum at 4 deg |
| Fines Conveyor Frame | 4 in x 8 in (10.2 cm x 20.3 cm) structural steel tubing |
| Rubber Flashing | Adjustable, 0.25 in (0.64 cm) thick, 4 in (10.16 cm) |
| Head Pulley Type | Rubber lagged, 12 in (30.5 cm) diameter, 38 in (99.65 cm) wide |
| Fines Belt Speed | 405ft/min (123.4m/min) |
| Self-Cleaning Tail Pulley Dimensions | 10 in (25.4 cm) diameter, 38 in (96.5 cm) wide with 2.4 in (6.1 cm) shaft |
| Self-Cleaning Return Idlers | 11, each 4 in (10.2 cm) diameter |
| Head Pulley Bearing | 2.4 in (6.1 cm) pillow block |
| Brush Assembly Support | Two 1.25-in (3.2-cm) sealed ball bearings |
| Bristle Material | Polyethylene |
| Brush Diameter | 14in (35.6cm) |
| Maximum Variable Overs Belt Speed | 290ft/min (88.4m/min) |
| Head Pulley Bearing | 2.4 in (6.1 cm) pillow block |
| Overs Conveyor Length | 20ft (6.1m) |
| Overs Conveyor Frame | 4 in x 8 in (10.2 cm x 20.3 cm) structural steel tubing |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm) |
| Conveyor Belt Size | 48 in (121.9 cm) wide with raised cleat |
| Solid Return Idler Size | 4-in diameter |
| Self-Cleaning Tail Pulley Dimensions | 10 in (25.4 cm) diameter, 51 in (129.5 cm) wide with 2.4 in (6.1 cm) shaft |
| Conveyor Belt Stacking Height | 3 ft (0.9 m) x 10 ft (3.1 m) |
| Head Pulley Type | Rubber lagged, 12 in (30.5 cm) diameter, 51 in (99.65 cm) wide |
| Tail Pulley Takeup | 12in (30.5cm) |
| Capacity | 22500lbs (10205.8kg) |
| Axle/Suspension | Leaf spring |
| Tires - Option One | 235-75R 17.5H qty. 4 |
| Frame Description | 4 independent hydraulic jacklegs |
| Weight | 65000lbs (29483.5kg) |
| Transport Height | 13.5ft (4.1m) |
| Operation Width | 113in (287cm) |
| Transport Width | 113in (287cm) |
| Operation Height | 15.9ft (4.8m) |
| Hitch Weight | 30000lbs (13607.8kg) |
| Transport Length | 54.5ft (16.6m) |
| Operation Length | 84.4ft (25.7m) |
| Capacity | Approximately 200 cu yd (152.9 cu m) per hour with 0.5 in (1.3 cm) screens installed and material with moisture less than 40% |
| Tank capacity | 200gal (757.1L) |
| Operation | 62.9 gpm @ 2800 psi (238.1 L/min @ 172.4 bar [17240 kPa]) |
| Drum Operation | 0-42.6 gpm (161.3 L/min) |
| Thrust Bearing Face | 2.9in (7.4cm) |
| Drum Speed | 0-24 rpm |
| Maximum Screen Panels | 8 |
| Thrust Bearing Diameter | 5in (12.7cm) |
| Drum Diameter | 6ft (1.8m) |
| Drum Motor | 48.8 cu in (800 cu cm) displacement |
| Drum Angle Adjustability | 0-7 degrees |
| Drum Drive Chain | 140 WT |
| Drum Support Description | Four steel trunnion rollers 8 in (20.3 cm) diameter, 4 in (10.2 cm) width |
| Drum Length | 26ft (7.9m) |
| Hopper Height | 9.5 ft (2.9 m) from ground level at operating incline |
| Apron Opening Height | 34in (86.4cm) |
| Apron Conveyor Belt Width | 48in (121.9cm) |
| Apron Opening Width | 43in (109.2cm) |
| Hopper Opening | 13.2 ft x 5.3 ft (4 m x 1.6 m) |
| Apron Conveyor Rollers | 4 in (10.2 cm) diameter qty. 14 |
| Hopper Bottom Width | 48in (121.9cm) |
| Apron Conveyor Length | 16ft (4.9m) |
| Hopper Capacity | 6cu yd (4.6cu m) |
| Apron Conveyor Speed | 0-35 fpm (0-10.7 m/min) |
| Conveyor Motor Displacement | 38.4cu-in (629.3cu-cm) |
| Fines Belt Speed | 405ft/min (123.4m/min) |
| Conveyor Belt Width | 36in (91.4cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm) |
| Head/Tail Pulley Type | Rubber-lagged, 12 in (30.5 cm ) diameter, 38 in (99.65 cm) wide |
| Head Pulley Bearing | 2.4 in (6.1 cm) pillow block |
| Rubber Flashing | Adjustable, 0.25 in (6.44 cm) thick, 4 in (10.2 cm) |
| Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 24 in (20.96 cm) centers |
| Tail Pulley Takeup | 12in (30.5cm) |
| Self-Cleaning Return Idlers | 6, each 4 in (10.2 cm) diameter |
| Fines Conveyor Frame | Part of trailer frame |
| Conveyor Motor Displacement | 21.4cu-in (350.7cu-cm) |
| Fines Conveyor Length | 30.5ft (9.3m) |
| Fines Belt Speed | 705ft/min (214.9m/min) |
| Conveyor Belt Type | 150 lb (99.8 kg), 2-ply, 1/32 in x 1/32 in (0.8 mm x 0.8 mm), vulcanized |
| Head/Tail Pulley Type | Rubber lagged, crowned, 9.75 in (24.8 cm) diameter, 32 in (81.3 cm) wide |
| Head Pulley Bearing | 1.94 in (4.9 cm) pillow block |
| Idler Type | 30 degrees CEMA "B" with permanently sealed bearings spaced at 41 in (104 cm) centers |
| Self-Cleaning Return Idlers | 4, each 4 in (10.2 cm) diameter |
| Fines Conveyor Frame | 2 in x 8 in (5.1 cm x 20.3 cm) structural steel building |
| Overs Conveyor Length | 28ft (8.5m) |
| Maximum Variable Overs Belt Speed | 290ft/min (88.4m/min) |
| Conveyor Belt Size | 48 in (121.9 cm) wide with raised cleat |
| Conveyor Belt Type | 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm) |
| Conveyor Belt Stacking Height | 3 ft (0.9 m) x 12.5 ft (3.8 m) |
| Head Pulley Type | Rubber lagged, 12 in (30.5 cm) diameter, 51 in (99.65 cm) wide |
| Head Pulley Bearing | 2.4 in (6.1 cm) pillow block |
| Self-Cleaning Tail Pulley Dimensions | 10 in (25.4 cm) diameter, 51 in (129.5 cm) wide with 2.4 in (6.1 cm) shaft |
| Head Pulley Takeup | 10in (25.4cm) |
| Overs Conveyor Frame | 2 in x 8 in (5.1 cm x 20.3 cm) structural steel tubing |
| Rubber disc return idler size | 4 in diameter |
| Rattler roller return idler size | 5.4 in diameter |
| Make and Model | Siemens |
| Motor rating | 150 hp, 1800 rpm, 460 V, 3 phase |
| System Voltage | 460 V |
