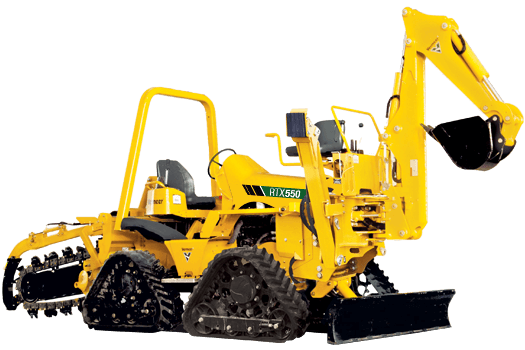

With your choice of rubber tires or a quad-track system, the RTX550 is equipped for most terrains. A wide selection of attachment options such as a trencher, vibratory plow and rockwheel, make it equipped for most job applications. An integrated system display is user-friendly, and a 65-hp (48.5 kW) Cummins diesel engine delivers all the power you need.
| Manufacturer | Vermeer |
| Model | RTX550 Ride-on Tractor |
| Category | Landscape, Renewable Energy, Rental, Utility Installation |
| Price | Request a Quote |
| Year | 2024 |
| Noise Level at Operator's Ear | 92 dB(A) |
| Guaranteed sound power | 109 dB(A) |
| Emissions rating | Tier 4 Final/Stage V |
| Fuel Type | Diesel |
| Maximum Operating Angle (Left/Right)* | 20deg |
| Maximum Operating Angle (Fore/Aft)* | 20deg |
| Cooling Medium | Liquid |
| Number of Cylinders | 4 |
| Maximum Torque | 173ft-lb (234.6Nm) |
| Gross Horsepower (Maximum) | 67hp (50kw) |
| Make and Model | Deutz TD2.9 |
| Guaranteed sound power | 108 dB(A) |
| Number of Cylinders | 4 |
| Maximum Torque | 158ft-lb (214.2Nm) |
| Make and Model | Cummins B3.3 |
| Noise Level at Operator's Ear | 90 dB(A) |
| Emissions rating | Tier 4i (EI Stage IIIA) |
| Fuel Type | Diesel |
| Maximum Operating Angle (Left/Right)* | 35deg |
| Maximum Operating Angle (Fore/Aft)* | 35deg |
| Cooling Medium | Liquid |
| Guaranteed sound power | 109 dB(A) |
| Gross Horsepower (Maximum) | 67hp (50kw) |
| Noise Level at Operator's Ear | 90 dB(A) |
| Emissions rating | Tier 4 Final |
| Fuel Type | Diesel |
| Maximum Operating Angle (Left/Right)* | 25deg |
| Maximum Operating Angle (Fore/Aft)* | 25deg |
| Cooling Medium | Liquid |
| Number of Cylinders | 4 |
| Maximum Torque | 173ft-lb (234.6Nm) |
| Make and Model | Deutz TD2.9 |
| Angle of approach (basic tractor, tracks) | 30deg |
| Angle of approach (basic tractor, rubber tires, option two) | 23deg |
| Angle of approach (basic tractor, rubber tires) | 20deg |
| Ground Clearance (tracks) | 12.2in (31cm) |
| Ground Clearance (rubber tires, option two) | 10.2in (25.9cm) |
| Ground Clearance (rubber tires) | 8.8in (22.4cm) |
| Tread width with rubber tires option three (centerline to centerline) | 55.5in (141cm) |
| Tread Width with Rubber Tires Option Two (Centerline to Centerline) | 59.5in (151.1cm) |
| Tread Width with Rubber Tires (Centerline to Centerline) | 57.4in (145.8cm) |
| Wheel Base (Centerline of Axles) | 61in (154.9cm) |
| Height (basic tractor, tracks) | 100.2in (254.5cm) |
| Height (basic tractor, rubber tires, option two) | 98.2in (249.4cm) |
| Height (basic tractor, rubber tires) | 96.8in (245.9cm) |
| Width (basic tractor, tracks) | 75.8in (192.5cm) |
| Width (basic tractor, rubber tires, option two) | 77.6in (197.1cm) |
| Width (basic tractor, rubber tires) | 72.4in (183.9cm) |
| Length (basic tractor, tracks) | 130.8in (332.2cm) |
| Length (basic tractor, rubber tires, option two) | 124.8in (317cm) |
| Length (basic tractor, rubber tires) | 123.6in (313.9cm) |
| Weight (basic tractor, tracks) | 7800lbs (3538kg) |
| Weight (basic tractor, rubber tires, option two) | 5870lbs (2662.6kg) |
| Weight (basic tractor, rubber tires) | 5600lbs (2540.1kg) |
| Display | DP10 |
| Battery Group Class | 29H-VHD |
| Battery CCA Rating | 950 |
| System Voltage | 12 Volt |
| Parking Brake Type | Spring-applied hydraulic release |
| Service Brake Type | Wet disc |
| Outside turning diameter (tracks, front and rear steer) | 20.1ft |
| Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer) | 19.8ft (6m) |
| Outside Turning Diameter (Rubber Tires, Front and Rear Steer) | 18.8ft (5.7m) |
| Outside turning diameter (tracks, front steer only) | 31.7ft |
| Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only) | 30.3ft (9.2m) |
| Outside Turning Diameter (Rubber Tires, Front Steer Only) | 29.8ft (9.1m) |
| Axle load rating (static, per axle) | 11250lbs (5102.9kg) |
| Rear Axle Type | Steerable planetary with gear box |
| Front Axle Type | Steerable planetary |
| Maximum reverse transport speed (high) | 4.1mph (6.6km/h) |
| Maximum forward transport speed (high) | 4.1mph (6.6km/h) |
| Tire size | 35" (88.9 cm) |
| Maximum reverse transport speed (high) | 6.1mph (9.8km/h) |
| Maximum forward transport speed (high) | 6.1mph (9.8km/h) |
| Tire size | 31" (78.7 cm) |
| Maximum reverse transport speed (high) | 5.6mph (9km/h) |
| Maximum forward transport speed (high) | 5.6mph (9km/h) |
| Coolant | 3gal (11.4L) |
| Hydraulic System | 20gal (75.7L) |
| Hydraulic Tank | 18gal (68.1L) |
| Fuel Tank | 26gal (98.4L) |
| Auxiliary pump relief | 2500psi (172.4bar) |
| Auxiliary pump capacity | 11.6gpm (43.9L/min) |
| Attachment pump relief | 5080psi (350.3bar) |
| Attachment pump capacity | 31gpm (117.3L/min) |
| Ground drive pump relief | 4350psi (299.9bar) |
| Ground drive pump capacity | 31gpm (117.3L/min) |
