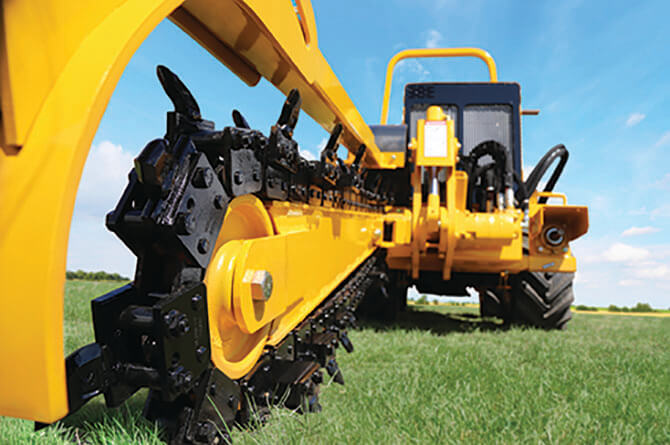

The PTX44 is a versatile machine that meets the needs of underground utility contractors, municipalities and landscaping professionals.
Powered by a 46.8 hp (34.9 kW) Kubota water-cooled gasoline engine, the PTX44 has 88.7 ft-lb (120.2 Nm) of torque to plow, trench or bore.
| Manufacturer | Vermeer |
| Model | PTX44 Plow/Trencher |
| Category | Landscape, Renewable Energy, Rental, Utility Installation |
| Price | Request a Quote |
| Year | 2024 |
| Gross Horsepower (Maximum) | 46.8hp (34.9kw) |
| Emissions rating | EPA Phase 3 and CARB LSI |
| Fuel Type | Gasoline |
| Cooling Medium | Liquid |
| Maximum Torque | 88.7ft-lb (120.3Nm) |
| Make and Model | Kubota WG1605 |
| Track width | 11in (27.9cm) |
| Maximum forward transport speed (high) | 2.4mph (3.9km/h) |
| Maximum forward creep speed (low) | 127ft/min (38.7m/min) |
| Tread Width with Rubber Tracks (Centerline to Centerline) | 32.3in (82cm) |
| Ground Clearance (tracks) | 6.9in (17.5cm) |
| Ground Clearance (rubber tires, option two) | 6.4in (16.3cm) |
| Ground Clearance (rubber tires) | 7.4in (18.8cm) |
| Tread Width with Rubber Tires Option Two (Centerline to Centerline) | 39in (99.1cm) |
| Tread Width with Rubber Tires (Centerline to Centerline) | 36in (91.4cm) |
| Wheel Base (Centerline of Axles) | 48in (121.9cm) |
| Height (basic tractor, tracks) | 88.5in (224.8cm) |
| Height (basic tractor, rubber tires, option two) | 88in (223.5cm) |
| Height (basic tractor, rubber tires) | 89.5in (227.3cm) |
| Width (basic tractor, tracks) | 44.5in (113cm) |
| Width (basic tractor, rubber tires, option two) | 60in (152.4cm) |
| Width (basic tractor, rubber tires) | 48in (121.9cm) |
| Length (basic tractor, tracks) | 92.8in (235.7cm) |
| Length (basic tractor, rubber tires, option two) | 84.8in (215.4cm) |
| Length (basic tractor, rubber tires) | 84.8in (215.4cm) |
| Weight (basic tractor, tracks) | 3840lbs (1741.8kg) |
| Weight (basic tractor, rubber tires, option two) | 3188lbs (1446.1kg) |
| Weight (basic tractor, rubber tires) | 2940lbs (1333.6kg) |
| Parking Brake Type | Drum |
| Service Brake Type | Hydrostatic |
| Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only) | 19.9ft (6.1m) |
| Outside Turning Diameter (Rubber Tires, Front Steer Only) | 18.9ft (5.8m) |
| Axle load rating (static, per axle) | 14800lbs (6713.2kg) |
| Rear Axle Type | Planetary |
| Front Axle Type | Planetary |
| Tire size | 23" x 10.5" (58.4 cm x 26.7 cm) duals |
| Maximum reverse transport speed (high) | 2.4mph (3.9km/h) |
| Maximum forward transport speed (high) | 2.4mph (3.9km/h) |
| Tire size | 26" x 12" (66 cm x 30.5 cm) |
| Maximum reverse transport speed (high) | 2.7mph (4.3km/h) |
| Maximum forward transport speed (high) | 2.7mph (4.3km/h) |
| Coolant | 1.3gal (4.7L) |
| Hydraulic System | 11gal (41.6L) |
| Hydraulic Tank | 9gal (34.1L) |
| Fuel Tank | 12gal (45.4L) |
| Auxiliary pump relief | 2500psi (172.4bar) |
| Auxiliary pump capacity | 10.4gpm (39.4L/min) |
| Attachment pump relief | 2900psi (199.9bar) |
| Attachment pump capacity | 24gpm (90.8L/min) |
| Ground drive pump relief | 2900psi (199.9bar) |
| Ground drive pump capacity | 33.3gpm (126.1L/min) |
