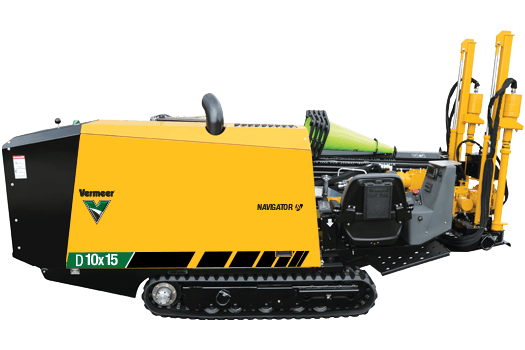

The D10x15 S3 Navigator® horizontal directional drill is a reliable, economical solution for small service installation — built to help increase your crew’s productivity so you can go from one job to the next faster. With significant gains in horsepower and speed and a reduction in noise, the D10x15 S3 can help you put more product in the ground in a shorter amount of time.
| Manufacturer | Vermeer |
| Model | D10x15 S3 HDD |
| Category | Renewable Energy, Utility Installation |
| Price | Request a Quote |
| Year | 2024 |
| Thrust/Pullback Pump Relief Pressure | 4350psi (299.9bar) |
| Thrust/Pullback Pump Flow at Max Engine RPM | 29gpm (109.8L/min) |
| Rotation Pump Relief Pressure | 4350psi (299.9bar) |
| Rotation Pump Flow at Maximum Engine RPM | 29gpm (109.8L/min) |
| Auxiliary Pump Relief Pressure | 3000psi (206.8bar) |
| Auxiliary Pump Flow at Maximum Engine RPM | 9gpm |
| Hydraulic Supply Filter Rating | 5 micron |
| Hydraulic Return Filter Rating | 5 micron |
| Minimum Bore Diameter | 2.5in (6.4cm) |
| Maximum Spindle Speed at Max Engine RPM | 240rpm |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 1500ft-lb (2033.7Nm) |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3mph (5.3km/h) |
| Maximum Carriage Speed at Maximum Engine RPM | 208ft/min (63.4m/min) |
| Guaranteed sound power (CE-rating) | 103 dB(A) |
| Thrust | 10000lbs (44.5kN) |
| Pullback | 10000lbs (44.5kN) |
| Maximum Pressure | 750psi (51.7bar) |
| Maximum Flow | 20gpm (75.7L/min) |
| On Board Tank Capacity | 25gal (94.6L) |
| Brand | FMC |
| Fuel Type | Low sulfur diesel |
| Make and Model | Deutz TD2.9 |
| Aspiration | Turbocharged |
| Gross Horsepower | 60hp (44.7kw) |
| Maximum Engine RPM | 2300rpm |
| Emissions rating | Tier 4i (EU Stage IIIA) |
| Noise Level at Operator's Ear | 86 dB(A) |
| Stakedown System | Standard or aggressive |
| Breakout System | Standard hyd vise |
| Flow Indicator | Standard |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| Fuel Tank | 18gal (68.1L) |
| Hydraulic System | 25gal (94.6L) |
| Weight | 7750lbs (3515.3kg) |
| Angle of Approach | 22deg |
| Length (Minimum Transport) | 153in (388.6cm) |
| Width (Minimum Transport) | 44in (111.8cm) |
| Height (Minimum Transport) | 66in (167.6cm) |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Low sulfur diesel |
| Maximum Engine RPM | 2300rpm |
| Gross Horsepower | 60hp (44.7kw) |
| Aspiration | Turbocharged |
| Emissions rating | Tier 4 Final (EU Stage IV) |
| Noise Level at Operator's Ear | 86 dB(A) |
| Drill Rod Thread | 1.66 Firestick® drill rod #200 |
| Thread Type | Firestick (#200) |
| Length | 6ft (1.8m) |
| Rod Diameter | 1.66 in (4.3 cm) |
| Joint Inside Diameter | .8in (2cm) |
| Weight | 26lbs (11.8kg) |
| Minimum Bend Radius | 95.5ft (29.1m) |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Low sulfur diesel |
| Maximum Engine RPM | 2300rpm |
| Gross Horsepower | 60hp (44.7kw) |
| Aspiration | Turbocharged |
| Noise Level at Operator's Ear | 87 dB(A) |
| Emissions rating | Tier 4 Final (EU Stage V) |
